型号：LSQ-S9 close type hydraulic quick coupling(steel)
产品详情
LSQ-S9 close type hydraulic quick coupling(steel)
Applications: The LSQ-S9 Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 |
| Rated Pressure(PSI) | 4000 | 4000 | 4000 |
| Rated Flow(GPM) | 3 | 6 | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ | ||
| Standard seal material | NBR | ||
LSQ-S9 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socked and plug are precision machined from solid bar stock.
6.Compatible with FASTER TNV Series.

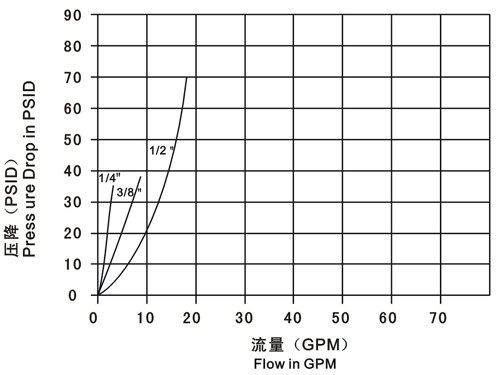

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

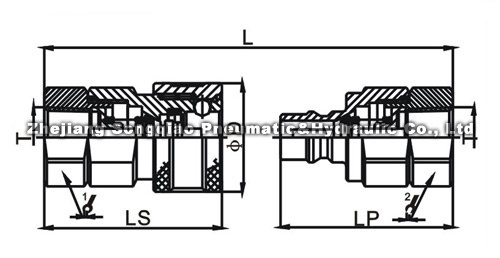

LSQ-S9 series (3/8",1/2")
Socket
| PART NO. | T | HEX1 | HEX2 | ￠ D | L | LS | LP |
| LSQ-S9-02 | NPT1/4 | 22 | 22 | 25.2 | 82.5 | 49.8 | 48 |
| LSQ-S9-03 | NPT3/8 | 25.4 | 25.4 | 30.5 | 81.7 | 50.6 | 48.8 |
| LSQ-S9-04 | NPT1/2 | 30.2 | 30.2 | 35 | 93.4 | 57.2 | 54.5 |
