型号：LSQ-TM close type hydraulic quick coupling
产品详情
Descripton:
LSQ-TM close type hydraulic quick coupling(steel)
Applications: The LSQ-TM Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5800 | 5000 | 4785 | 4785 | 4785 |
| Rated Flow(GPM) | 4 | 10 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃ to +120℃ | ||||
| Standard seal | NBR | ||||
LSQ-TM Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socked and plug are precision machined from solid bar stock.
6.Compatible with TEMA TH Series, STUCCHI IRC Series.

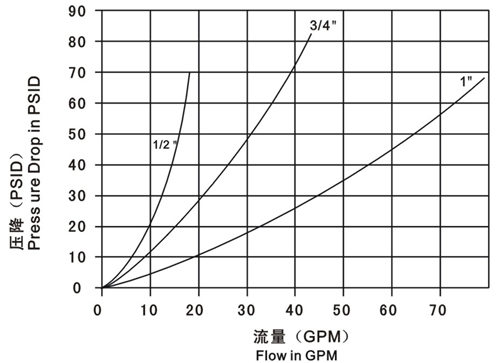

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
LSQ-TM series (1/4,3/8, 1/2",3/4",1")
| PARTNO. | T | D | HEX1 | HEX2 | L | LS | LP |
| LSQ-TM-02 | G1/4 | 26 | S21 | S18 | 81.8 | 60 | 48.2 |
| LSQ-TM-03 | G3/8 | 35 | S24 | S22 | 76.7 | 61 | 38 |
| LSQ-TM-04 | G1/2 | 40 | S30 | S27 | 85.5 | 67.5 | 42.5 |
| LSQ-TM-06 | G3/4 | 52 | S38 | S36 | 94.5 | 76.4 | 47 |
| LSQ-TM-08 | G1 | 62 | S45 | S45 | 113.8 | 92.4 | 56.5 |
