LSQ-S2 Close Type Hydraulic Quick Coupling(Steel)
Applications:LSQ-S2 couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.LSQ-S2 are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.

Specifications:

LSQ-S2 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-S2 series conforms to the standard of ISO 7241-B.
7.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

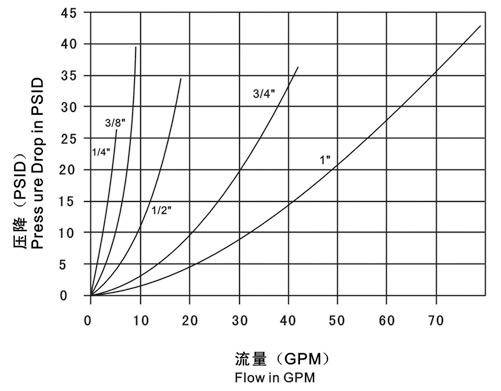

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa

LSQ-S2 Series(1/4",3/8",1/2",3/4",1")

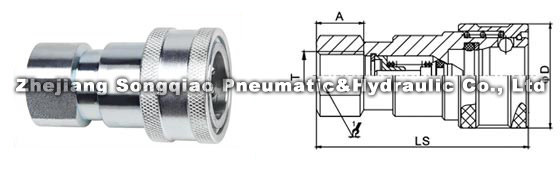

Socket

Plug

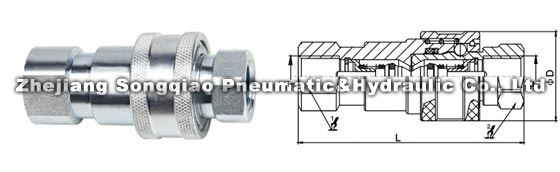

Coupled
